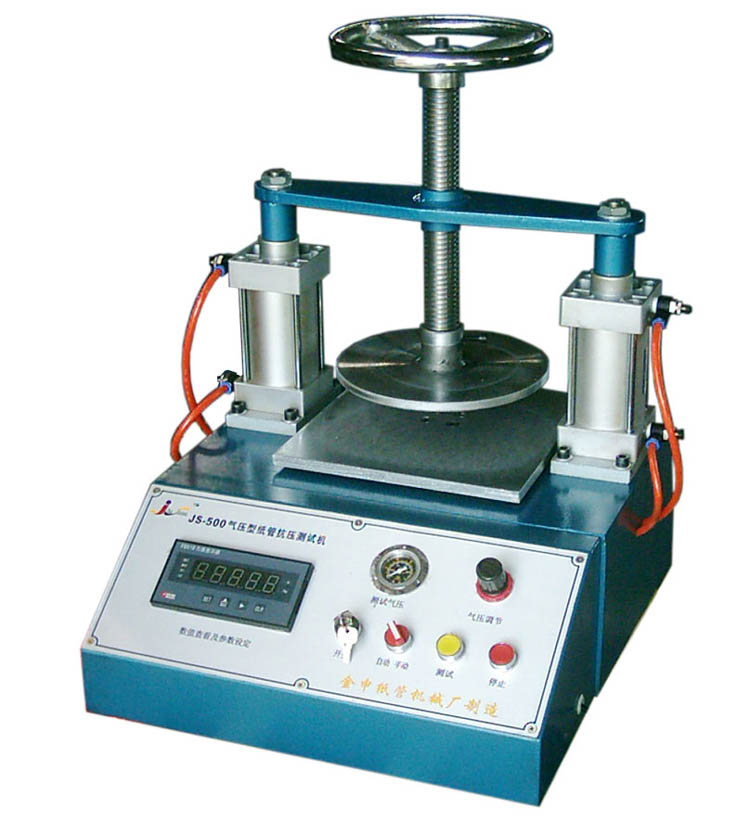

paper tube pressure measure machine 纸管压力测试机

For examin the paper tube's intensity of pressure endurance.
1.Adroption high precision electron charge sense systerm , digtal wrting.
2.With field inspection and peak value keepping.
3.Has Newton(N)and Kilogram(kg) on it .
4.Cylinder driving with strong pressure.
5.With over-balance messure protection .
6.All and controlling 、compression 、peak value inspection and return automatically .

Specifications

examined paper tube diameter	20-250mm	power	220V/0.5A
precision	+/-0.005	person	one
atmospheric pressure	0.2-0.6MPA	max-examine pressure	500kg
screw control	0—	out-put communication	RS485
machine weight	60kg	outward appearance	length500mm*width580mm*heigt650mm
pressure plate size	down plate=300mm*300mm    up plate=circle,diameter=250mm
