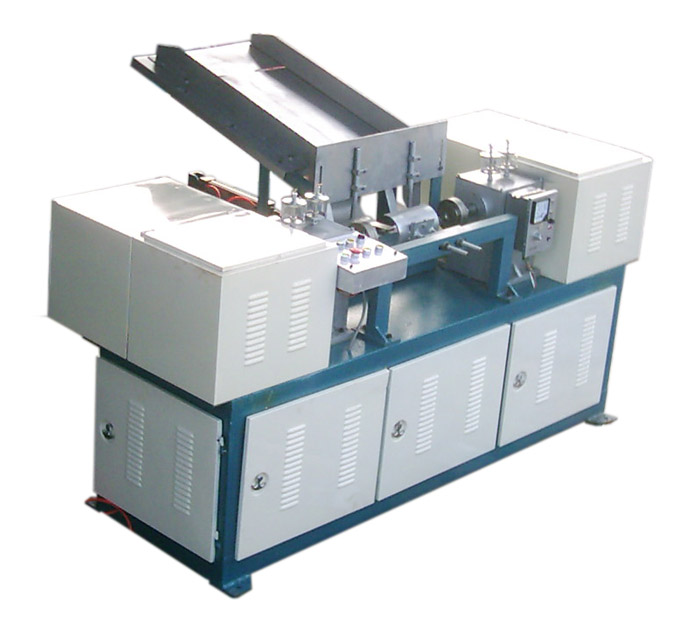

JS-1535 paper tube grinder 纸管卷磨机

1.Grinding the cutted paper tube up to inside or outside
2.Rubbing off the rough edges of the paper tube after cutting which become standard .
  ① Automatically ,simple to operate.
  ② The head of grinder has screw thread which is convenient to control the length of paper tube .
  ③ Unload by cam ,which can be sure the stability of the paper tube's length .

Specifications
rubbing tube diameter	50-150mm	thickness	3-20mm
rubbing tube length	50-350mm	speed	18-40只/min
working atmosph -eric pressure	0.3-0.5mpa	way of send and unload the meterial	automatically
outward oppearance size	2000×1200×1400mm	number of person	one
power	6.75KW	power	3*380
