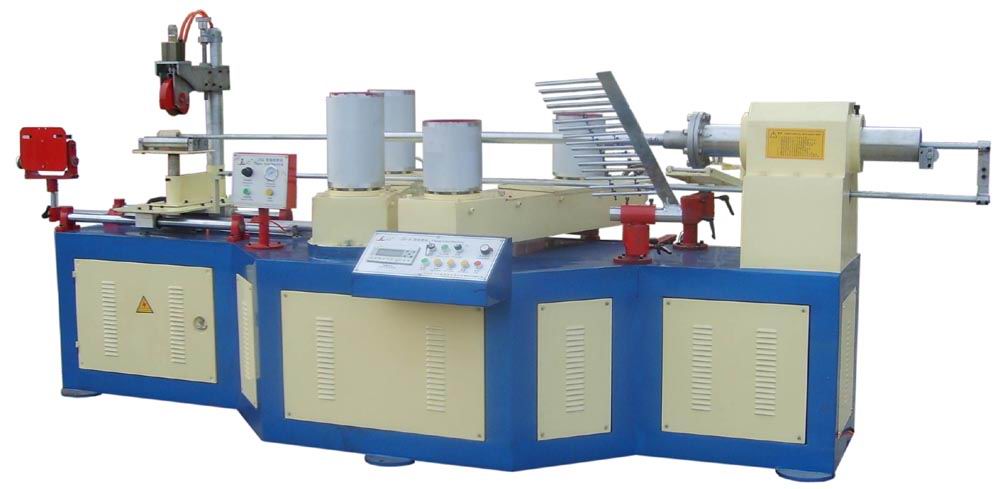

JS-34120 paper tube machine 纸管机

Features

It is used to produce a series of paper tube, including fireworks tube, rolls of cloth core,electricity aluminium core,cotton core , fax paper core, preservative film core, toilet paper core and so on.
1. Dopting imported PLC logic control system and single electricity control box, the speed of mainframe is adjusted by transducer which can save 30% electricity than by common electromagnetic.
2. The control circuit adopts intergrated mother with insert and pull terminal connection,every terminal has function instruction.It is more intuitional,convenient and scientific to be used ,repaired and preserved.
3. Dopting international disply 304L so as to monitor and amend the running data of machine.There are dozens of functions in machine interior, including produce opertation,condition surveillance,parameter establishment,obstacle information and so on.
4. Having wireless remote-control manipulator,it can control machine start up or stop and running speed with 100 meters.
5. It is an idea machine with high precision of pneumatic cutting head,using impoted blade to cutting quick can quickly return,because of return-alleviator cutting station.And it can adjust cutting location precise ,improve incision smooth and beautiful.
6. It’s a surpass silence design (national patent), tight convey frame, high efficiency , low maintain.
7. Dopting two-side gluing, single stainless glue solt, imported polyurethane drawknife, the intensity of paper core that produce by this machine id better than single face traditional machine.
8. It has the long-distance control function and is equiped with our factory special communication tools and monitor software.Users can use computer to monitor the condition of machine running at office or other place.

Specifications

Number of roll paper	3-16 layers
Interor diameter of paper tube	20mm-200mm
Thickness of  Paper tube	1mm-10mm
Automation cutting length	600mm-5000mm
Cutting sample	Single rolling cutting
Fixed length sample	Photoeletric eye
Length of tolerance	1mm-3mm
Gluing system	Single gluing groove
Paper system	Crisscross paper shelf   Gluing double face
Productive tempo	3-20 M/MIN
Mainframe power	7.5KW
Power	3×380V
Controlling  system	PLC(JS-E2.0) Letter display
Operator	1-3 person
Mainframe  measure	3700mm×1650mm×1600mm
