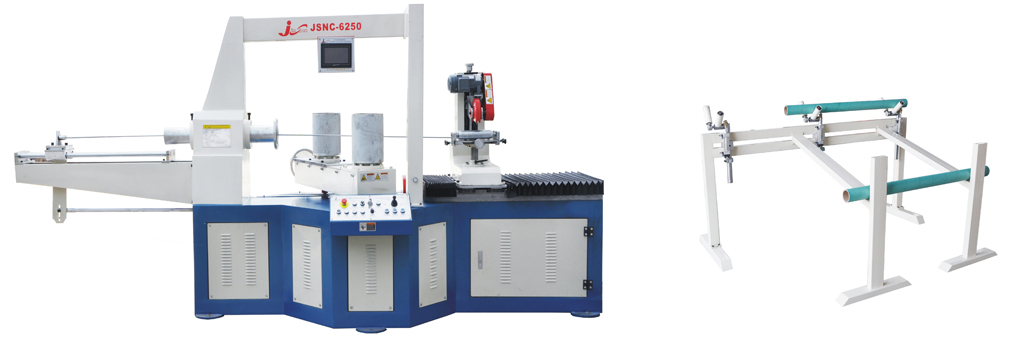

JSNC-6250H paper tube machine
纸管机 |
| Model |
Numerical control Paper tube machine JSNC- 6250H |
| Technical parameter |
Wheel hub driving |
2 wheels |
| Number of roll paper |
3-8 plies |
Cutting motor |
1.3kw Servo & Stepping motor |
| Max-diameter |
100mm |
bearing |
Wanxiang |
| Min-diameter |
10mm |
Control system |
| Max-thickness |
5mm |
Controller |
PLC Delta 28sv |
| Min-thickness |
1mm |
Man-machine interface |
We!view6070I |
| Rolling core matrix fixed way |
fixation |
Program edition |
JS-E 4.0 |
| Rewinding noses |
Double noses single belt |
Inverter |
YASKAWA 5.5KW |
| Cutting way |
Single blade cutting |
Execute equipment |
Omron |
| Gluing way |
Double sides |
Signal component |
Omron |
| Fixed length way |
Infrared/encoder |
Pneumatic part |
Airtac |
| operator |
1月2日 |
Angle adjusting motor |
Hangzhou |
| Productive speed |
3-35m/min |
synchronized control |
Servo |
| Speed of adjust and control |
Inverter |
Synchronized follow system |
Have |
| Power input |
380V |
Outfit assemble |
| Size (mm) |
Remote control |
Have |
| Mainframe size: |
4300mm*1700mm*1600mm |
Auto finished tube holder |
Have |
| L*W*H |
| Area space: L*W |
12000*8000 |
Angle of belt |
Auto |
| Wheel hub diameter |
215mm |
Belt adjust |
manual |
| Wheel hub width |
200/350 |
Scraping glue way |
Polyurethane scrape |
| Min-tread |
750 |
Stop when paper without |
have |
| Max-tread |
950 |
Auto giving glue |
Screw pump 1.5KW |
| Total weight |
About 3000kg |
Auto giving lubricating oil |
Auto |
| Drive system |
Tension control |
Have |
| Main power |
5．5 KW |
Paper-shelf type |
integral shelf |
| Move speed |
1400r/min |
belt |
Have |
| Hub max speed |
96r/min |
Enclosed component |
| Hub output strength |
3000N.M |
Shaft |
2 |
| Reductor type |
Wpo155 |
Air compressor |
-- |
| Gearbox type |
-- |
Useful tool |
have |
| Driving chain type |
16A*1 |
Winding belt |
2 |
