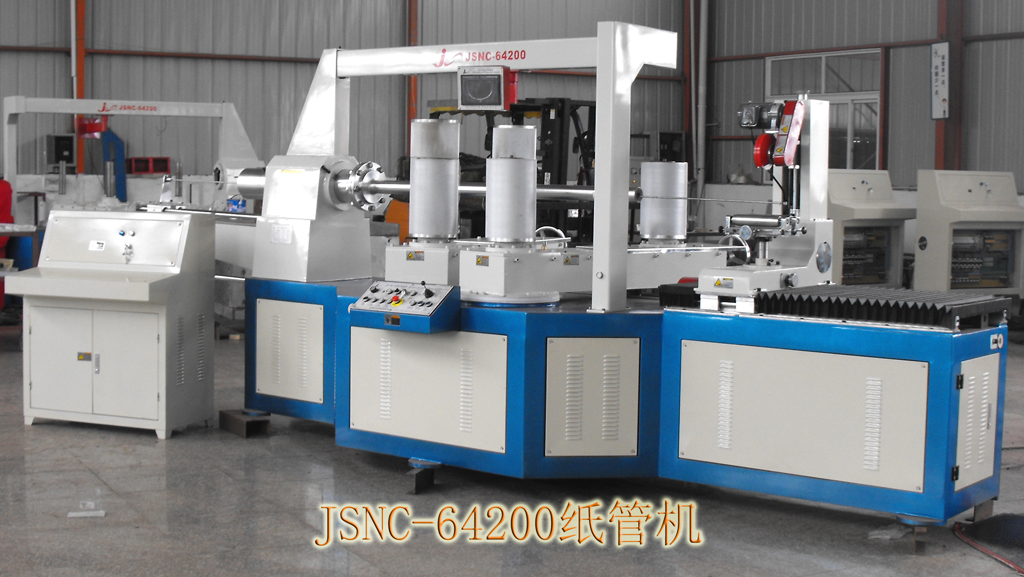

JSNC-200 paper tube machine 纸管机

Features

It is used to produce a series of paper tube, including fireworks tube, rolls of cloth core,electricity aluminium core,cotton core , fax paper core, preservative film core, toilet paper core and so on.
1.Dopting imported PLC logic control system and single electricity control box, the speed of mainframe is adjusted by transducer which can save 30% electricity than    by common electromagnetic.
2.The control circuit adopts intergrated mother with insert and pull terminal connection,every terminal has function instruction.It is more intuitional,convenient and scientific    to be used ,repaired and preserved.
3.Dopting imported color touch-screen5.7”,graph operating system,leading interface designs and several kinds of functions tentacles controllable,so as to easy to    operate,automatic to memory and reserve,automatic to alarm and so on.
4.This machine is equiped with the most advance CNC computer digital control system and SMSsynchronized follow cutting system,
5.Dopting sibgle bound blade to cut and all digital control drive blade (without driving by cylinder) to make cutting location much precise, so that improves incision    smoothness without cutting again or waste.
6.It’s surpass silence design (national patent), tight convey frame, high efficiency , low maintain.
7.Dopting two-side gluing, single stainless glue solt, imported polyurethane drawknife, the intensity of paper core that produce by this machine id better than single face    traditional machine.
8.The belt angle and machine angle are controlled by motor, swing angle set up on touch screen.
9.It has the long-distance control function and is equiped with our factory special communication tools and monitor software.Users can use computer to monitor the    condition of machine running at office or other place.

Model	JSNC-200
Technical parameter		Wheel hub driving	4wheels
Number of roll paper	3-24 layer	Cutting blade motor	servo
Max-diameter	300mm	bearing	Wanxiang
Min-diameter	25mm	Control system
Max-thickness	15mm	Controller
Min-thickness	1mm	Man-machine interface	We!view506T color touch screen
Rolling core matrix fixed way	fixation	Program edition	JS-E 1.0
Rewinding noses	Four noses double belt	Transducer	Anchuang 15KW
Cutting way	Three blade cutting	Execute equipment	Zhentai
Gluing way	Double sides	Signal component	Lugong
Fixed length way	Infrared/	Pneumatical part	Ya de hu
	Numbering device
opertor	1月4日	Angle adjusting machine	Ziguang low speed
Productive speed	3-20m/min	synchronized control	Servo
Speed of adjust and control	transducer	Synchronized follow system	Have
Power input	3*380V	Outfit assemble
Size (mm)		Remote control	Have
Mainframe size:	4400*2000*1600	Auto falling tube shelf	Have
L*W*H
Area space:L*W	18000*6000	Angle of belt	Auto
Wheel hub diameter	235mm	Belt adjust	manual
Wheel hub width	400/650	Mainframe swing angle	Can choose
Min-tread	900	Stop when paper without	Can choose
Max-tread	1150	Auto giving glue	Gear pump 1.5KW
Total weight	About 2260kg	Auto giving lubricating oil	Auto
Drive system		Tension control	By Air pressure
Main power	15KW	Paper-shelf type	Whole shelf
Move speed	1400r/min	belt	sailcloth
Hub max speed	80r/min	Enclosed  component
Hub output force	8600n.m	Winding anxle	2
Reductor type	Wpo155	aircompressor	--
Gearbox typa	Jiefang 141	Useful tool	have
Driving chain type	16A*2	Winding belt	2
