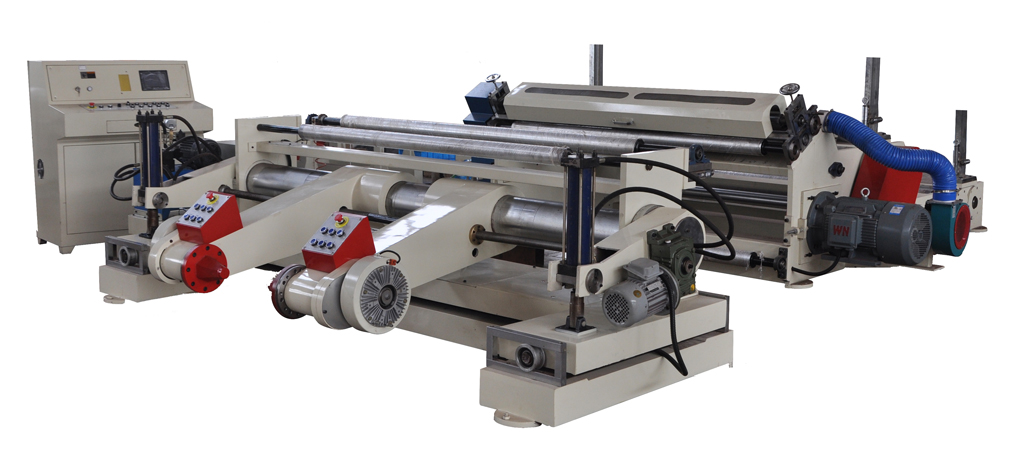

JS-SR1600paper cutting machine 分切机 |
Specifications
| Model |
PAPER TUBE SLITTER AND REWINDER JS-SR16000 |
| Technical parameter |
Control system |
| Max width mother roll |
1600mm |
PLC Controller |
Delta(Taiwan) |
| Min-width mother roll |
25mm |
Main-machine interface |
Xinje |
| Max-diamete mother roll |
1200mm |
Tension sensor |
Hz100kg |
| Max-diamete finish roll |
1200mm |
Executive equipment |
CHNT |
| Speed of Slitting |
200m/min |
Signal component |
OMRON |
| Slitting capabitity |
35-700g |
Pneumatic component |
Airtac |
| Rewinding way |
By gas inflated |
Program edition |
JS-RSV2.0 |
| Sliting knife |
21set |
transducer |
YASKAWA7.5KW |
| Paper giving way |
By liquid compression |
|
|
| speed of adjust and control |
Transducer |
|
|
| Power input |
380V three phase four lines |
|
|
| |
|
outfit assemble |
| |
|
Loading material |
Liquid compression |
| |
|
Unloading material |
Manual |
| Size (mm) L*W*H |
Automatic aim edge |
Liquid compression edge correcting |
| Unwinding machine |
1300mm*3700mm*1000mm |
Count meter |
Have |
| Rewinding machine |
2250mm*2300mm*1000mm |
Tension adjust |
By air pressure |
| Up-knife specification |
4*105*70mm |
rewing double airshaft |
| Down-knife specification |
4*105*70mm |
Slitting by double knife, |
| Total weight |
2650kg |
Sensor for tension control system |
| Convey system |
| Mainframe power |
5.5KW |
Enclosed component |
| Mainframe wheeling speed |
1400r/min |
Aircompressor |
no |
| Fluid pressure motor |
1.5kw |
Useful tool |
have |
| Way of correcting edge |
Liquid compression |
|
|
| Running |
Connect axes |
|
|
| Bearing |
Wanxiang |
|
|
