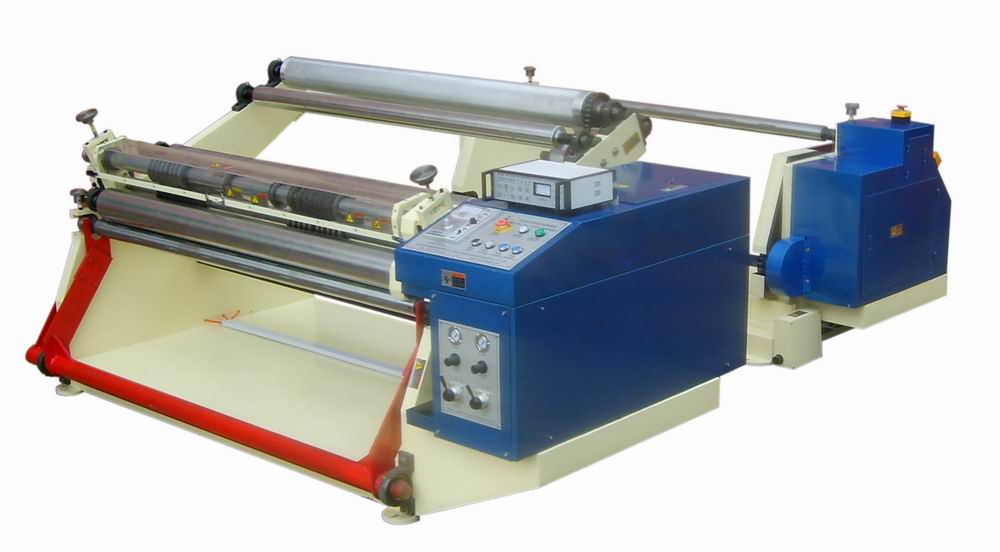

JS-BX original paper cutting machine 分切复卷机

Features

Suitble for all kinds of kraft paper 、tea paperboard、grasspaperboard 、calico and artpaper
1. A pair of thick knives cutting.
2. Plate and smooth on the both sides of the paper strap after cutting .
3.Non-raw edge of paper trap and non paper coiling solid structure
4.Nectify deflexion automatism.
5.All operation concentrate on the panel ,convenient to operate.
6.High output can offer three coiling tube machine to use.
7.Armor plate structrure ,fine precision.
8.Unload the meterial pneumatic,simple to operate.

Specifications

model	BX paper slitter and rewinder
parameter		Control systerm
Jumbo roll max-width	1650mm	edge-attracting controller
Jumbo roll min-width	25mm	Driving parts	Chain
Jumbo roll umwind diameter	1200mm	Signal parts	LUGONG
Finish roll max diameter	1000mm	Pneumatical	YASKAWA
Slitting speed	150m/min
Slitting range	35-600gsm
Involution method	Air pressure stalk involution
Knives number	21
Paper giving way	automatically lift the paper
Speed adjust	Speed adjust machinery
Power supply	380V
		COMPONENT
		equipment	electrical
		unload	pneumatical
size(mm)		Edge-correction	Elettrical
Rewind：L*W*H	2850 mm * 1500 mm* 1300mm	Tension adjust	Pneumatical adjust the bearing
Up knife	4*105*70mm	Rewind unwind two aircompressor bearing
down knife	4*105*70mm	Double-knives slit with thicknessful knives
weight	2260kg
Driving systerm
Main motor	4Ktaizhou guoli	Free components
Moving speed	1400r/min	Aircompressor
lift machinery of base paper	2.2kw	Usfull tools	Penumatic qun (1 set),T type of spanner ( 1 set),cap spanner ( 1 set), inner hexagon spanner(1 set ), buckle (1 set),gas nipple (2 pieces)
edge-attracting blower	Y110 60:1
Rewind speed gear down	WPA12hangzhou jiacheng
Paper lift speed gear down	WPA100 hangzhou jiacheng
Driving way	Connected bearing
bearing	Wan xiang
