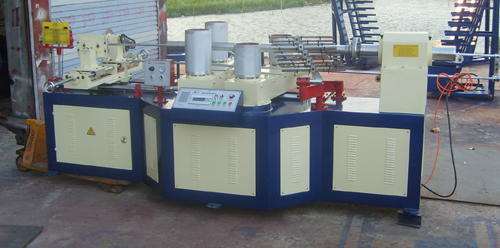

JS-120A paper tube winder 纸管机

Features

Suitble for all kinds of sticky tape,web,chemical fibre tube ,pack productionof pot .
1. setup more than eighty kings of function you can establish the machinerunning voluntainess.
2.shift gear and reply automatically while cutting .
3.many operate the panel or remote control,convenient operate.
4.control timing by frequency conversion which can save 30% than timing by electromagnetic.
5.control by computer PLC with long-distance port.
6.adjust figure display by take machine head the angle.
7.cutting by three knives ,very flate margin,performance is steady.
8.setting by double-infrered ray,length of paper tube is pricese with mainframe speedconversion outomatically.

Specifications

number of roll paper	3－16 floors	number of person	2月3日
molding tool	conjunction method the screw fixs	speed ratio  of the host computer	1：30
molding tool diameter	15－100mm	speed of coiling paper	3－8m/min
working way	2 leather belts	cutting way	three knives incise
mainframe power	7.5kw	specification of mainframe	1600×1500×3300
asisstant mainframe	0.75kw	regulate the length method	double-infrered ray (error<1mm)
way of having glue	bosseyed or double -faced	speed of adjust and control	frequency conversion+PLC
power	3*380v	paper tube of thickness	1.5－10mm
Model	JS-120A
Technical parameter		Wheel hub driving	4 wheels
Number of roll paper	3-16 layer	Cutting blade motor	micromotor
Max-diameter	200mm	bearing	Wanxiang
Min-diameter	20mm	Control system
Max-thickness	10mm	Controller
Min-thickness	1mm	Man-machine interface	MD304L
Rolling core matrix fixed way	fixation	Program edition	JS-E 1.0
Rewinding noses	Four noses double belt	Transducer	7.5KW
Cutting way	Single bladecutting	Execute equipment	Zhengtai
Gluing way	Double sides	Signal component	Lugong
Fixed length way	Infrared	Pneumatical part	Ya dei ke
opertor	1月4日	Angle adjusting motor	--
Productive speed	3-20m/min	synchronized control	--
Speed of adjust and control	transducer	Synchronized follow cut-system	--
Power input	3x380V	Outfit assemble
Size (mm)		Remote control	have
Mainframe size:L*W*H	4400*2000*1600	Auto falling tube shelf	--
Area space:L*W	18000*6000	Angle of belt	manual
Wheel hub diameter	215mm	Belt adjust	manual
Wheel hub width	200/350	Mainfram swing angle	Can choose
Min-tread	750	Stop when paper without	Can choose
Max-tread	950	Auto giving glue	Gear pump 1.5 kw
Total weight	About 1800kg	Paper-belt giving lubricating oil	Auto
Drive system		Tension control	Can choose
Main power	7.5KW	Paper-shelf type	Level equip
Move speed	1400r/min	belt	sailcloth
Hub max speed	48r/min	Enclosed component
Hub output strength	4500n.m	Winding core rod	2
Reductor type	WPO	Winding core belt	2
Gearbox typa	155	Useful tool	have
		aircompressor	--
