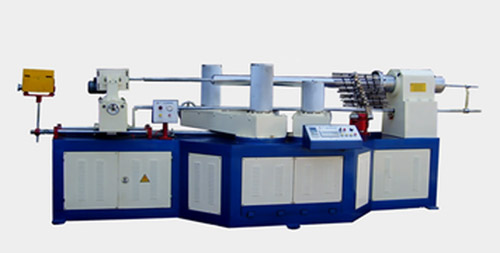

JS-200A paper tube winder 纸管机

Features

Suitble for all kinds of the core and chemical fibre tube such as sticky tape,web ,OPP membrane and so on.
1. Setup more than eighty kings of function you can establish the machine running voluntainess.
2. Shift gear and reply automatically while cutting .
3. Many operate the panel or remote control,convenient operate.
4. Control timing by frenquency which can save 30% than timing by eletromagnetic.
5. Control by computer PLC with long-distance port .
6. Adjust figure display by take the machine head the angle.
7. Cutting by three knives,very flate margin ,performance is steady .
8. Setting by double-infrered ray ,automatical speed-conversion make the length of the paper tube precise.
9. Have four speed-coversion boxescan save more electricty

Specifications

number of roll paper	3－24 floors	number of person	2月3日
molding tool	conjunction method the screw fixs	speed ratio of the host computer	1：20　1：6.75
molding tool diameter	15－200mm	speed of coiling tube	3－8m/min
working way	2 leather belts	cutting way	three knives incise
mainframe power	11kw	specification  of mainframe	1800×1600×4000
asisstant mainframe	0.75kw	regulate the length method	double-infrered ray（error<1mm）
way of having glue	bosseyed or double-faced	speed of adjust and control	frequency conversion+PLC
power	3*380v	paper tube thickness	1.5－15mm
