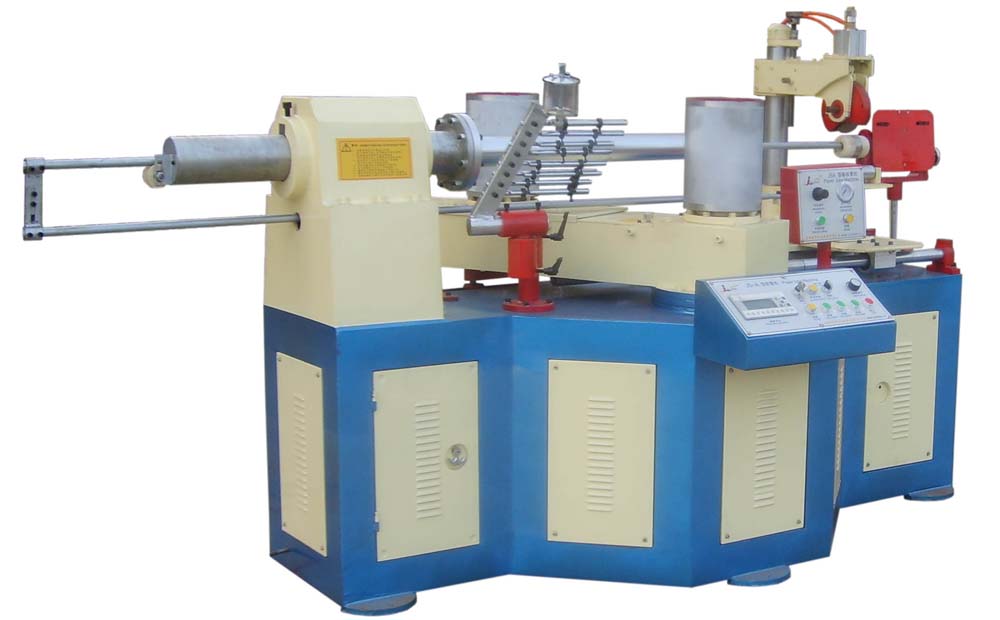

JS-3250 paper tube machine
纸管机 |
| Specifications |
| Model |
JS-3250(50A) |
| Technical parameter |
cutting motor |
K micro motor |
| Number of roll paper |
3-8layer |
Bear |
Wanxiang product |
| Max-diameter |
120mm |
Control system |
| Min-diameter |
15mm |
PLC controller |
Taida DVP |
| Max-thickness |
6mm |
Man-machine interface |
E-view304 disply |
| Min-thickness |
0.6mm |
Program edition |
JS-A2.8V |
| Coiling core matrix fixed way |
Fixation |
Transducer |
ZIRI4KW |
| Rewinding noses |
Two noses single belt |
Executive equipment |
Zhengtai |
| Cutting way |
Single round knife cutting |
Signal component |
Lugong |
| Gluing way |
Gluing double side |
Pneumatic component |
Ya dei ke |
| Fixing length way |
infrared |
Adjusting angle motor |
No |
| Opertor |
1 |
Sychronized control |
No |
| Productive speed |
3-20m |
Fixing length way |
infrared |
| Speed of adjust control |
Transducer |
Syschronized follow system |
No |
| Power input |
380v 三相四线 |
Outfit assemble |
| Size(mm) |
Remote control |
Have |
| Mainfram:L*W*H |
2600*1600*1500 |
Auto falling tube-shelf |
Can choose |
| Area space:L*W |
12000*4000 |
Belt angle |
Manual adjust |
| Wheel hub diameter |
215mm |
Belt adjust |
Manual adjust |
| Wheel hub width |
300mm |
Mainframe swing angle |
No |
| Min-tread |
750mm |
Stop when paper eithout |
Can choose |
| Max-tread |
900mm |
Auto giving glue |
Gear pump 1.5KW |
| Total weight |
1000kg |
Auto lubricating oil |
Can choose |
| Convey system |
Paper –shelf type |
Cruciform fission paper-shelf |
| Mainfram power |
4kw wannan |
Tension control |
No |
| Mainframe wheeling speed |
1400r/min |
Belt |
One piece |
| Hub max wheeling speed |
80r/min |
Enclosed component |
| Wheel hub output tread |
3000n.m |
Winding core rod |
No |
| Reductor type |
WPOD Hangzhou Jiacheng |
Aircompressor |
No |
| Greabox type |
120 |
Sueful tool |
have |
| Wheel hub driving |
2wheel driving |
|
|
