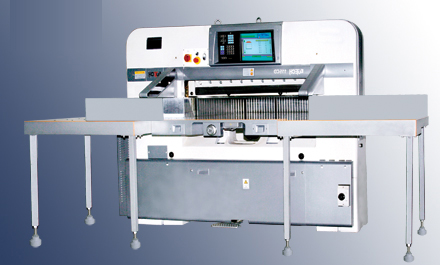

Paper cutter and guillotine 切纸机
Product > Paper cutter and guillotine 切纸机
Specifications
| Item / Model |
EUTECH-92CD |
EUTECH-115CD |
EUTECH-137CD |
| cutting width |
92cm |
115cm |
137cm |
| The height of paper-weight |
13cm |
16.5cm |
16.5cm |
| Paper feeding depth |
92cm |
115cm |
145cm |
| master power |
4kw |
4kw |
4.5kw |
| net weight |
2500kg |
3800kg |
4500kg |
| Machine width including plate table |
212cm |
315cm |
287(337)cm |
| machine width(without plate table) |
198cm |
236.5cm |
238.5cm |
| machine length |
205cm |
246.5cm |
278.5cm |
| machine height |
156cm |
165cm |
165cm |
| Fore-table length |
69cm |
100cm |
100cm |
| worktable height |
90cm |
90cm |
90cm |
| paper-weight pressure(Min) |
150dan |
150dan |
150dan |
| paper-weight pressure(Max) |
6000dan |
8000dan |
8000dan |
| cutter blade sizes |
12.7cm |
13.75cm |
13.75cm |
| grinding datum(Max) |
3cm |
6cm |
6cm |
| Min. cutting datum (the min. datum without paper-weight) |
2.5cm |
2.5cm |
2.5cm |
| Min. cutting datum (the min datum with paper-weight) |
9cm |
9.5cm |
9.5cm |
| cutting speed |
45/min |
45/min |
45/min |
| Machine dimension(W*H*L) |
225×140×191cm |
140×200×275cm |
140×200×295cm |
| voltage |
361-399V |
361-399V |
361-399V |
| fuse |
25A |
25A |
25A |
| wires diameter |
2.5mm2 |
2.5mm2 |
2.5mm2 |
