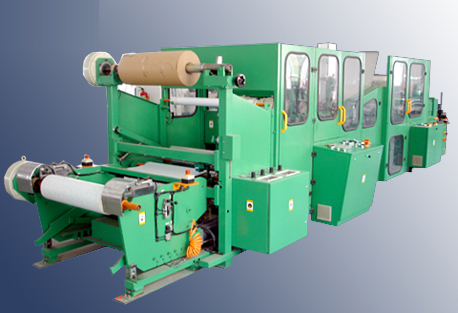

Gift-Paper Roll Rewinding Machine
自动卷筒礼品纸包装机 |
Specifications
| Item / Model |
CHM-SRW800 |
| Cutting Colorful Paper Type |
Upper knife rotary, lower knife fixed |
| Cutting Kraft Type |
Upper knife rotary, lower knife fixed |
| Max. Diameter of colorful paper |
1100mm(44.3.in) |
| Max. Diameter of kraft paper |
1100mm(44.3.in) |
| Max. Width of kraft paper |
800mm(31 in) |
| Max. Width of colorful paper |
800mm(31 in) |
| Cutting length of colorful paper |
1050mm-30000mm |
| Cutting length of kraft paper |
85mm-320mm |
| Cutting accuracy |
±1mm |
| Rollers per minute |
less than 2.5m each roll 45 rolls/min |
| Operation speed |
It depends on the material and each roll’s cutting length. 180m/min |
| Air pressure source |
Max.8.0g/cm^2 5M^3/Min |
| 13.Power supply |
AC380V/220V 50Hz |
