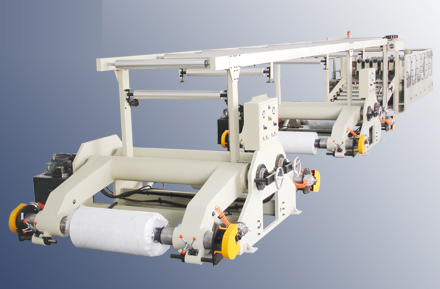

A4 Cut Size Sheeter
A4 复印纸双回旋刀切纸机 |
Specifications
| Item / Model |
CHM-A4-4 |
| Paper Width |
Gross width: 900mm, Net width: 870mm |
| Cutting Number |
4 cutting-A4 210mm(width) |
| Paper Roll's diameter |
max:Ф1200mm，min:Ф600mm |
| Paper core's diameter |
3"(76.2mm)、6”（152.4mm) or by your demand |
| Paper grade |
High-grade copy paper, high-grade writing office paper, high-grade glue paper tc. |
| Paper Weight |
60-100g/m^2 |
| Sheet Length |
297mm(is specially design for A4 paper,the cutting length is 297mm) |
| Sheets Quantity/ream |
500 sheets Max.Height： 65mm |
| Production Speed |
Max 0-120m/min(depends on different paper quality) |
| Max. Numbers of cutting |
404/min |
| Output of the ream |
12reams/min |
| Load of cutting |
Max:400g/m^2 ( 4 x 100g/m^2 ) |
| Cutting accuracy |
±0.2mm |
| Cutting condition |
no variation of the speed,no break,cut all the paper at one time and need the eligible paper. |
| Main power supply |
3*380V/50HZ |
| Voltage |
220V AC /24V DC |
| Power |
45KW |
| Compressed Air Consumption |
300NL/min |
| Air Pressure |
6bar |
| Cutting Edge |
10mm×2 |
| Safety Guarantee |
designed according to the domestic stander of safety |
