| NAME AND TYPE |
MAIN TECHNICAL DATA |
Q'TY |
| SY-100-710 Conveyer |
Power 3kw, used to transport the raw material to the hydrapulper |
1unit |
| ZSJZ-3 HydraPulper |
Effective Volume: 3m3,Power: 55kw,material of Pulp tank and screw:carbonized steel |
1unit |
| PZ-3 Operation Platform |
for hydrapulper |
1unit |
| ZKS-1.8 Vibration Screen |
Screen area:1.8m2, Power: 4kw,including a pulp inlet tank |
1 unit |
| JB-160-210 Agitator |
Include reducer (3kw)and agitator,material of shaft and splatter of the agitator: Stainless steel. Agitating diameter:1600mm |
2sets |
| MOR200 Consistency Controller |
Consistency: 0.6%-6.0% |
1set |
| Automatic Control System |
stainless steel pneumatic control box including reversing valve, F.R.L.Combination，E type integrated valve and pipe fittings |
1set |
| KZ-40 Control Cabinet for Pulping System |
Use PLC,touch screen control,control the automatic pulping system. inludes 2 electrical control cabinet and 2 control box. |
1unit |

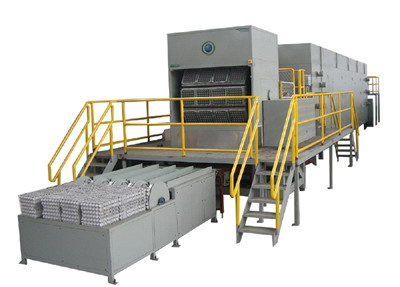

| XZ12-16040 Automatic Rotary Forming Machine |
The forming Machince has 12 forming platens,rotating structure,Material of mold platen is stainless steel, platen size :1600 ×400 mm ,PLC+Touch screen control,driven by motor,power:7.5kw.Preheating system applied |
1unit |
| PX-12 Operation Platform |
Setting up for operating the forming machine and the product inlet of the drying equipment |
1unit |
| SGL-3 water treatment system |
used to treat the water for mold washing,blower cooling,vacuum water sealing. It is composed of filters,water tanks(1.1m3,S.S)Pneumatic control valve,control box and etc. |
1set |
| GYS-5.5 high pressure water supplying system |
it is composed of water tank(0.8m3,S.S),water pump 3(high pressure,5.5kw),high pressure water storage tank(0.2m3),safety valve,check valve,pressure meter,sensors and electrical control appliance.Used for mold washing. |
1set |
| GZ-4000 Auto Drain System |
Matching with Forming System,include Air-water Seperation Tank,Auto DrainTank,Support,Check Valve,Electromagnetic valve,Inductor etc |
1 unit |
| HR6-16033-14-E Drying Line |
Effective width 1600mm,transfered speed adjustable.The outline dimension : 21000×2120×4200mm. Fuel : Diesel oil/Nature gas/LPG. power:32.2kw |
1unit |
| PH-6 Operation Platform |
Setting up for operating the burner |
1unit |
| WT-6 Movable Ladder for Inspection and Maintenance |
Designed for inspection and maintenance of the drying equipment |
1unit |
| KXH-40 Control System for Main Machine |
use PLC,touch screen to control automatically the forming machine,drying machine and auxilairy systems. Includes 3 electrical control cabinets and 5 control boxes. |
1unit |
| SC-160-660 Finished Product Conveyor |
Power: 0.75kw |
1set |
| DB4-32 Stacker |
Power: 0.75 kw,for stacking |
1 set |
| YJ-4131-140 Height Limit Pressor |
Used to limit the height of the products after stacking |
1 unit |
| Mold |
30 cavity egg tray 56pcs/set(52pcs of forming mold,four of them are spare +4pcs of transfter mold), material of the mold: high strength plastic |
1unit |
