Creasing and cutting machine 压痕机
Product > Creasing and cutting machine 压痕机
|

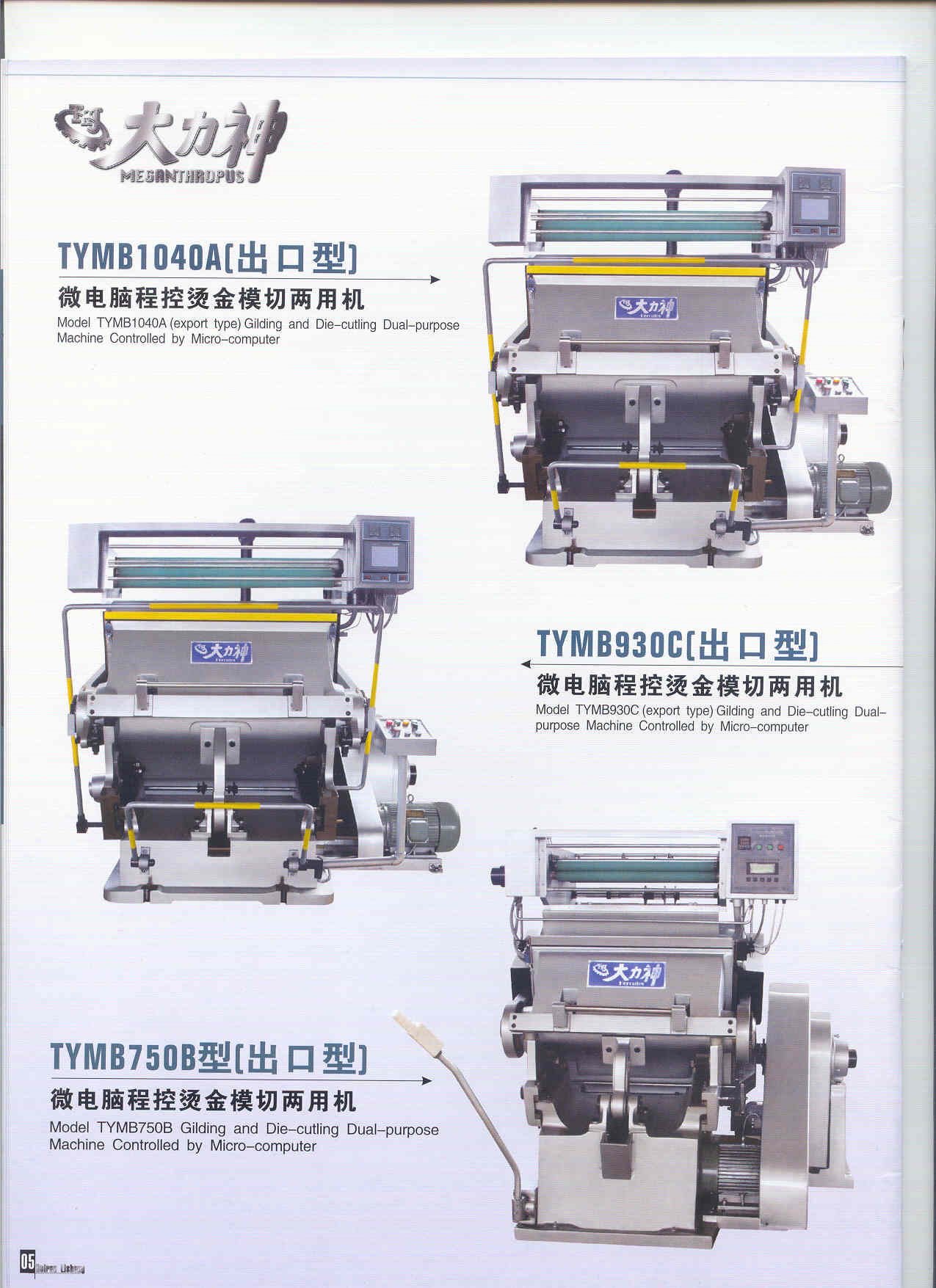

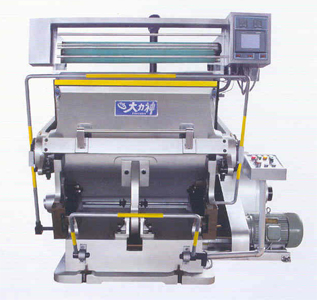

Micro-computerized gilding and die-cutting platen machine
微电脑程控烫金模切两用机 |
Specifications
| Items |
Model |
| TYMB930C |
TYMB1040A |
TYMB750B |
| Max. gilding area: |
860x600mm |
1040x720mm |
620x480mm |
| Max. die-cutting area: |
930x660mm |
1100x800mm |
690x480mm |
| Die-cutting size: |
36"x26" |
41"x28 3/8" |
25 1/2"x18 7/8" |
| Gilding pressure: |
120T |
140T |
60T |
| Delivery of foil: |
0-600mm±1mm |
0-720mm±1mm |
0-500mm±1mm |
| Difference of foil |
±1mm |
±1mm |
±1mm |
| Gilding speed: |
24±1 strokes/min |
22±1 strokes/min |
24±2 strokes/min |
| Main motor power: |
4 KW |
4 KW |
2.2 KW |
| Electro-heat power: |
3x2.5 KW |
3x3.0 KW |
4.0 KW |
| Weight: |
4.5 tons |
4.8 tons |
2.0 tons |
| Dimension(mm): |
1750x1620x1800 |
2040x1725x1850 |
1500x1350x1500 |
